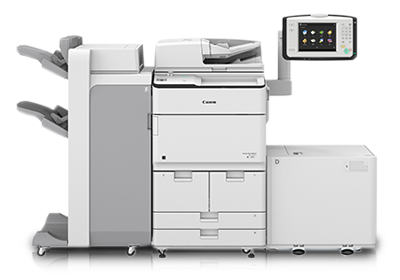

imageRUNNER ADVANCE 8505/8595/8585
- 商品介紹
- 產品規格
imageRUNNER ADVANCE 8505/8595/8585
高效能、直覺設計、多樣化的完稿選項
imageRUNNER ADVANCE 8500 系列為高需求辦公環境與 CRD 提供高效能優質黑白輸出。該智慧型系統可透過多樣化的完稿選項提高工作效率，同時維持直覺的使用者體驗。
- 黑白列印速度最高達 105ppm
- 掃描速度最高達 240/220 ipm (300 dpi)（黑白、彩色、雙面）
- 最大列印尺寸為 SRA3
- 最大紙張容量達 7,700 張
產品特色
作業流程效率
- 直覺使用者介面配備反應靈敏的大型彩色觸控螢幕，執行任務更輕鬆簡單。
- 以擴展支援行動及靈活作業方式提升效allowing you to save more energy and costs率，工作者出門在外也能隨時擷取或列印文件，並且存取特定雲端應用程式。
- 「進階個人化」可在整體多功能複合機中提供獨特個人體驗，創造專為滿足每位使用者作業流程需求所量身打造的自訂使用者體驗。
- 一次自動雙面文件送稿機最多可容納 300 張原稿，支援將文件掃描轉換成可搜尋 PDF、Microsoft® Word 以及 Microsoft® PowerPoint 檔案。
- 利用彈性的完稿選項，例如專業打孔、折疊、文件插入及小冊子製作等等，建立具有專業水準的報告、小冊子、電子報、手冊、提案及合約。
- 選購的 imagePASS 列印控制器是應付繁忙工作的理想選擇，能提供穩健的處理能力、可變資料列印 (VDP) 及列印生產作業流程。
成本管理
- 施行列印策略、監測輸出及依使用者限制用法之功能，有助於減少非必要列印、促進成本回收，並可節省紙張和碳粉費用。
- 與輸出管理解決方案（如-uniFLOW）密切整合，提供執行細節追蹤、報告及成本分析之功能。
- 品質與可靠性結合遠端診斷及輔助，有助於使停機時間和 IT 解決問題的時間減至最少，從而降低成本。
- 一致的使用者操作，加上遠端且集中化的多功能複合機管理，可簡化裝置與整體多功能複合機的 IT 管理。
安全性
- 使用標準 Universal Login Manager 應用程式，控制經由身分驗證進入裝置的權限。
- 藉由一連串標準和選購文件安全功能，可防止未經授權發布敏感資訊。
- 採用網際網路安全協定-(IPsec)、連接埠過濾功能及安全封包層協定(SSL) 技術，有助於在您的整個網路中確保資訊隱私和安全。
裝置及整體多功能複合機管理效率
- 預先設定裝置的能力，使得安裝變得更簡單，並允許同步多部裝置的設定，簡化多功能複合機的管理。
- Canon 的裝置管理工具可讓您於一處集中控管整體多功能複合機，包括檢查裝置狀態與耗材，遠端關閉裝置、擷取電子讀表計數，以及管理通訊錄與印表機驅動程式的能力。
- 標準正版 Adobe PostScript 與 PCL 支援與企業應用程式和原有系統整合，可簡化業務程序。
可靠性
- Canon 著名的可靠性與引擎技術提供高品質輸出，能滿足繁忙部門以及企業文印中心 (CRD) 與廠內印表機之需求。
- 最先進的成像技術和碳粉能以飽滿黑白色調提供一致性醒目影像，以及1,200 dpi 列印解析度。
- 設計上可實現最大正常運行時間，具備狀態通知功能以保持耗材供應充足，直覺使用者操作短片可引導使用者即時更換碳粉，並具有自動工作重新路由功能（須配備選購的解決方案）。
永續性
- 透過融合技術、精確輸出 (pO) 碳粉及創新睡眠模式功能，有助於降低整體能耗。
- 藉由預設的雙面列印、安全列印，以及在裝置上保留列印工作、進行預覽和變更列印設定之功能，有助於減少浪費，幫助您第一次就能達成所需成效。
- 採用永續性設計，部分零件使用再生素材和生物型塑料，並著重於盡可能減少對環境的衝擊。
- 符合 ENERGY STAR 並獲得 EPEAT Silver 認證。
相關耗材
紙張
Business High Grade Paper
High grade white paper for general office use. Good opacity eliminates show-through with double sided copying and printing.
A4 (70gsm) 500 sheets/ream (5/ctn)
A4 (80gsm) 500 sheets/ream (5/ctn)
Premium Paper
Premium white paper with consistent performance and reliability for high quality volume copying and printing. Produced using 100% Eucalyptus fibre offering high bulk and opacity.
A4 (70gsm) 500 sheets/ream (5/ctn)
A4 (80gsm) 500 sheets/ream (5/ctn)
| Machine type | Monochrome Laser Multifunctional Printer | |
| Core functions | Print, Copy, Scan, Send, Store and Optional Fax | |
| Processor Speed | Canon Dual Custom Processor (Shared) | |
| Control Panel | 26.4 cm (10.4 inch) TFT LCD SVGA Color Touch panel | |
| Memory | 3.0 GB RAM | |
| Hard Disk Drive | Standard: | 250GB |
| Maximum: | 1TB | |
| Mirroring Hard Disk Drive | Optional (250 GB, 1 TB), Method: Raid1 | |
| Interface Connection | Network Standard: | 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
| Optional: | NFC, Bluetooth | |
| Others Standard: | USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface | |
| Paper Capacity (A4, 80gsm) | Standard: | 4,200 sheets |
| Maximum: | 7,700 sheets | |
| Paper Sources (A4, 80gsm) | Standard: | 1,500 sheets x 2 paper decks + 550-sheet cassette x 2 |
| 100-sheet Multi-purpose tray | ||
| Optional: | 3,500 sheets (POD DECK LITE-C1) | |
| 3,500 sheets (PAPER DECK UNIT-E1) | ||
| Maximum: | 7,700 sheets | |
| Paper output capacity (A4, 80gsm) | 250 sheets (Copy Tray-R2) | |
| 3,500 sheets (with STAPLE FINISHER-V2/BOOKLET FINISHER-V2) | ||
| 4,250 sheets (with STAPLE FINISHER-X1/BOOKLET FINISHER-X1) | ||
| 5,000 sheets (with STAPLE FINISHER-W1 PRO/BOOKLET FINISHER-W1 PRO) | ||
| Finishing capabilities | Collate, Group, Offset | |
| With External finisher: Staple, Staple On Demand, Eco Staple, Booklet, Booklet Trimming, Hole Punch, Professional Hole Punch, Document Insertion, Folding (C, Z, Half, Accordion Z, Double-parallel) | ||
| Supported media types | Upper Left/Right Decks (1/2): | Thin paper, Plain paper, Recycled paper, Color paper, Heavy paper, Pre-punched paper, Letterhead, Bond paper |
| Lower Cassettes (3/4): | Thin paper, Plain paper, Recycled paper, Color paper, Heavy paper, Pre-punched paper, Letterhead, Bond paper, Tab paper* 2 | |
| Multi-purpose tray: | Thin paper, Plain paper, Recycled paper, Color paper, Heavy paper, Pre-punched paper, Bond, Transparency, Labels, Letterhead, Tab paper, Tracing* 3 | |
| POD DECK LITE-C1: | Thin paper, Plain paper, Recycled paper, Color paper, Heavy paper, Pre-punched paper, Letterhead, Bond paper, Transparency, Labels, Tab paper | |
| PAPER DECK UNIT-E1: | Thin paper, Plain paper, Recycled paper, Color paper, Heavy paper, Pre-punched paper, Letterhead, Bond paper | |
| Supported media sizes | Upper Left/Right Decks (1/2): | Standard size: A4, B5 |
| Lower Cassettes (3/4): | Standard size: A3, B4, A4, A4R, A5R, B5, B5R, SRA3 | |
| Custom size: 139.7 mm x 182 mm to 330.2 mm x 487.7 mm | ||
| Multi-purpose tray: | Standard size: A3, B4, A4, A4R, A5R, B5, B5R, SRA3 | |
| Custom size: 100 mm x 148 mm to 330.2 mm x 487.7 mm | ||
| POD DECK LITE-C1: | Standard size: A3, B4, A4, A4R, A5R, B5, B5R, SRA3 | |
| Custom size: 139.7 mm x 182 mm to 330.2 mm x 487.7 mm | ||
| PAPER DECK UNIT-E1: | A4 , B5 | |
| Supported media weights | Cassettes: | 52 to 220 g/m2 |
| Multi-purpose tray: | 52 to 256 g/m2 | |
| Duplex: | 52 to 220 g/m2 | |
| Warm-up Time | From Power On*4: | 60 Seconds or Less |
| From Sleep Mode: | 60 Seconds or Less | |
| Dimensions (W x D x H) | 1481 mm x 770 mm x 1252 mm | |
| Installation Space(W x D) | 1,362 mm x 1,353 mm (Basic: only Multi-purpose tray + Cassette drawers open + Copy Tray) | |
| 4,098 mm x 1,617 mm (Fully configured: POD DECK LITE-C1 + BOOKLET FINISHER-W1 + DOCUMENT INSERTION UNIT-N1 + PAPER HOLDING UNIT-J1 + BOOKLET TRIMMER-D1) | ||
| Weight | Approx. 240 kg*5 | |
| Print Specifications | ||
| Printing method | Monochrome laser beam printing | |
| Print Speed | iR-ADV 8585 | 85 ppm (A4) |
| 44 ppm (A3) | ||
| 63 ppm (A4R) | ||
| 85 ppm (A5R) | ||
| iR-ADV 8595 | 95 ppm (A4) | |
| 50 ppm (A3) | ||
| 69.1 ppm (A4R) | ||
| 95 ppm (A5R) | ||
| iR-ADV 8505 | 105 ppm (A4) | |
| 54 ppm (A3) | ||
| 76.3 ppm (A4R) | ||
| 105 ppm (A5R) | ||
| Print Resolution*6 | 1,200 dpi x 1,200 dpi, 600 dpi x 600 dpi | |
| Page description languages | UFR II (standard), PCL 6, Genuine Adobe PostScript Level 3 (optional) | |
| Double Sided Printing | Automatic (Standard) | |
| Direct Print | Direct printing available from USB memory key, Advanced space, Remote UI and Web Access *7 | |
| Supported file types: PDF, TIFF, JPEG, EPS and XPS | ||
| Operating System | UFRII: | Windows Vista/Server 2008/Windows 7/Server 2008 R2/ Server 2012/ Windows 8.1/ Server 2012 R2/ Windows 10/Server 2016, MAC OS X (10.7 or later) |
| PCL: | Windows Vista/Server 2008/Windows 7/Server 2008 R2/Server 2012/ Windows 8.1/ Server 2012 R2/ Windows 10/Server 2016 | |
| PS: | Windows Vista/Server 2008/Windows 7/Server 2008 R2/ Server 2012/ Windows 8.1/ Server 2012 R2/ Windows 10/Server 2016, MAC OS X (10.7 or later) | |
| PPD: | MAC OS X (10.3.9 or later), Windows Vista/Windows 7/Windows8.1/Windows10 | |
| Copy Specifications | ||
| Copy Speed | iR-ADV 8585 | 85 ppm (A4) |
| 44 ppm (A3) | ||
| 63 ppm (A4R) | ||
| 85 ppm (A5R) | ||
| iR-ADV 8595 | 95 ppm (A4) | |
| 50 ppm (A3) | ||
| 69.1 ppm (A4R) | ||
| 95 ppm (A5R) | ||
| iR-ADV 8505 | 105 ppm (A4) | |
| 54 ppm (A3) | ||
| 76.3 ppm (A4R) | ||
| 105 ppm (A5R) | ||
| First-Copy-Out Time | Approx. 2.7 seconds or less | |
| Copy resolution | Reading: | 600 dpi x 600 dpi |
| Printing: | 1,200 dpi x 1,200 dpi | |
| Multiple Copies | Up to 9,999 copies | |
| Copy Exposure | Automatic or Manual (9 Levels) | |
| Magnification | 25% - 400% (1% Increments) | |
| Preset Reductions | 25%, 50%, 61%, 70%, 81%, 86% | |
| Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
| Basic Copy Features | Preset R/E Ratios by Area, Paper Setting, Previous Setting, Favourite Setting, Finishing, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Setting Confirmation/Cancel | |
| Special Copy Features | Book to Two Pages, Two-sided Original, Finishing, Booklet, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Density Adjustment, Original Type Selection, Transparency Cover Sheets, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Shift, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Job Done Notice, Mirror Image, Print on Tab, Store in Mail Box, Superimpose Image, Cascade Copy, Copy ID Card, Multi Sheet Feed Detection, Free Size Original | |
| Scan Specifications | ||
| Standard type | Color flatbed plus Single-pass duplex automatic document feeder (1-Pass duplex scan) | |
| Document Paper Capacity | 300 Sheets (80 g/m2) | |
| Acceptable Originals/weights | Platen: | Sheet, Book, 3-Dimensional Objects (Up to 2kg) |
| Feeder size: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R | |
| Feeder weight: | Single-sided scanning: 38 to 220 g/m2/64 to 220 g/m2(BW/CL) | |
| Double-sided scanning: 50 to 220 g/m2/64 to 220 g/m2(BW/CL) | ||
| Pull Scan Specifications | Color Network ScanGear2. For both TWAIN and WIA | |
| Supported OS: Windows Vista/7/8.1/10/ Windows Server 2008/ Server 2008 R2/ Server 2012/ Server 2012 R2/ Server 2016 | ||
| Scan Resolution | 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 300 x 300 dpi, 200 x 400 dpi, 400 x 400 dpi, 600 x 600 dpi | |
| Scan Method | Send functionality available on all models | |
| Scan to USB Memory Key: Available on all models | ||
| Scan to Mobiles or internet-connected devices: A range of solutions is available to provide scanning to mobile devices or internet-connected devices depending on your requirements. Please contact your sales representative for further information" | ||
| Scan to cloud-based services: A range of solutions is available to provide scanning to cloud-based services depending on your requirements. Please contact your sales representative for further information | ||
| TWAIN/WIA Pull scanning available on all models | ||
| Scan Speed (BW/Color; A4) | Single-sided (300 dpi): | 120/120 ipm |
| Single-sided (600 dpi): | 120/60 ipm | |
| Double-sided (300dpi): | 240/220 ipm | |
| Double-sided (600 dpi): | 150/60 ipm | |
| Double sided scanning | 2-sided to 2-sided (Automatic) | |
| Fiery Print Controller Specifications | ||
| Optional/Standard | Optional on all models | |
| Name | imagePASS- Y2 (External) | |
| Print Resolution | 1200 dpi x 1200 dpi, 600 dpi x 600 dpi | |
| Page Description Language(s) | PCL, Adobe PostScript 3, APPE | |
| Memory | 4 GB | |
| Hard Disk Drive | 500 GB | |
| Processor Speed | Intel Celeron G1820 2.7 GHz | |
| System | Fiery FS150Pro | |
| Fonts | PS: | 138 Adobe PS Fonts |
| PCL: | 113 PCL Fonts | |
| Supported Operating Systems | Windows VISTA 32 and 64 bit / Windows 8 32 and 64 bit / Windows 8.1 32 and 64 bit / Windows 10 32 and 64 bit/ Windows Server 2008 32 and 64 bit / Windows Server 2008 R2 64 bit only / Windows Server 2012 64bit only / Windows Server 2012 R2 64bit only / Windows Server 2016 64 bit only, MAC OS (10.7 or higher) | |
| Dimensions (W x D x H) | 233 mm x 530 mm x 464 mm | |
| Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB x7 (Front x 1: USB 2.0, Rear x 6: USB 2.0 x 4, USB 3.0 x 2) | |
| Standard Features | Hot Folder, Secure Erase, VDP-A1 Kit, Paper Catalog Kit, Virtual Printer | |
| Network protocols | TCP/IP (LPD/ Port 9100/ IPP/ SMB/ FTP), ATP/ DDP (AppleTalk)/Direct mobile printing/PrintMe cloud printing | |
| Fiery Print Controller Options | FIERY IMPOSE , FIERY COMPOSE , FIERY IMPOSE COMPOSE , Removable Hard Disk Drive, Integration Interface and Stand (19" display, keyboard, mouse, and furniture stand), Fiery ImageViewer | |
| Paper Supply Options | ||
| Paper Supply Options | Name: | POD DECK LITE-C1 |
| Paper Size: | A3, A4, A4R, A5R, B5, B5R, SRA3 and Custom Size (139.7 mm x 182 mm to 297 mm x 431.8 mm 330.2 mm x 487.7 mm) | |
| Paper Weight: | 52 to 256 g/m2 | |
| Paper Capacity: | 3,500 sheets (80 g/m2) | |
| Dimensions (W x D x H): | 656 mm x 686 mm x 570 mm | |
| Weight: | Approx. 68 kg | |
| Name: | PAPER DECK UNIT-E1 | |
| Paper Size: | A4, B5 | |
| Paper Weight: | 52 to 256 g/m2 | |
| Paper Capacity: | 3,500 sheets (80 g/m2) | |
| Dimensions (W x D x H): | 363 mm x 630 mm x 572 mm | |
| Weight: | Approx. 34 kg | |
| Output options | ||
| STAPLE FINISHER-V2 (External) | Number of Trays: | 3 |
| Tray A (Upper) Capacity: | A4, B5, A5R: 250 sheets, A3, B4, A4R, B5R, SRA3: 125 sheets | |
| Tray B (Middle) Capacity: | A4, B5, A5R 250 sheets, A3, B4, A4R, B5R, SRA3: 125 sheets | |
| Tray C (Lower) Capacity: | A4, A5R, B5: 3,000 sheets, A3, B4, A4R, B5R, SRA3: 1,500 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | Letter, Executive, A4, B5: 65 sheets (80 g/m2), A3, B4, A4R: 30 sheets (80 g/m2) | |
| Staple-Free Staple: | ||
| A3/A4: | 5 sheets (52 to 64 g/m2) | |
| 4 sheets (65 to 81.4 g/m2) | ||
| 3 sheets (81.5 to 105 g/m2) | ||
| Staple On Demand: | 65 sheets (80 g/m2) | |
| Dimensions (W x D x H): | 527 mm × 623 mm × 1,099 mm (when the extension tray is not extended) | |
| Weight: | Approx. 35 kg | |
| BOOKLET FINISHER-V2 (External) | Number of Trays: | 3 |
| Tray A (Upper) Capacity: | A4, B5, A5R: 250 sheets, A3, B4, A4R, B5R, SRA3: 125 sheets | |
| Tray B (Middle) Capacity: | A4, B5, A5R 250 sheets, A3, B4, A4R, B5R, SRA3: 125 sheets | |
| Tray C (Lower) Capacity: | A4, A5R, B5: 3,000 sheets, A3, B4, A4R, B5R, SRA3: 1,500 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | Letter, Executive, A4, B5: 65 sheets (80 g/m2), A3, B4, A4R: 30 sheets (80 g/m2) | |
| Staple-Free Staple: | ||
| A3/A4: | 5 sheets (52 to 64 g/m2) | |
| 4 sheets (65 to 81.4 g/m2) | ||
| 3 sheets (81.5 to 105 g/m2) | ||
| Staple On Demand: | 65 sheets (80 g/m2) | |
| Saddle Stitch paper size: | A3, B4, A4R, Custom Size: (195 mm x 270 mm to 304.8 mm x 457.2 mm) | |
| Saddle Stitch Staple Capacity: | 20 Sheets (81 g/m2), including 1 cover Sheet up to (256 g/m2) | |
| Dimensions (W x D x H): | 527 mm × 623 mm × 1,099 mm (when the extension tray is not extended) | |
| Weight: | Approx. 58 kg | |
| STAPLE FINISHER-X1 (External) | Number of Trays: | 3 |
| Tray A (Upper) Capacity: | A4/B5/A5R1,500 sheets, A3/B4/A4R/B5R/SRA3 750 sheets | |
| Tray B (Middle) Capacity: | A4/B5/A5R 250 sheets, A3/B4/A4R/B5R/SRA3 125 sheets | |
| Tray C (Lower) Capacity: | A4/A5R/B5 2,500 sheets, A5R 1,500 sheets, A3/B4/A4R/B5R/SRA3 750 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | A4/B5: 100 sheets(80 g/m2), A3/B4/A4R: 50 sheets(80 g/m2) | |
| Power Source: | 100-240V AC, 50-60 Hz, 2.8A | |
| Dimensions (W x D x H): | 654 mm × 765 mm × 1,040 mm (when the extension tray is not extended) | |
| Weight: | Approx. 64 kg | |
| BOOKLET FINISHER-X1 (External) | Number of Trays: | 3 |
| Tray A (Upper) Capacity: | A4/B5/A5R1,500 sheets, A3/B4/A4R/B5R/SRA3 750 sheets | |
| Tray B (Middle) Capacity: | A4/B5/A5R 250 sheets, A3/B4/A4R/B5R/SRA3 125 sheets | |
| Tray C (Lower) Capacity: | A4/A5R/B5 2,500 sheets, A5R 1,500 sheets, A3/B4/A4R/B5R/SRA3 750 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | A4/B5: 100 sheets(80 g/m2), A3/B4/A4R: 50 sheets(80 g/m2) | |
| Booklet Stitch paper size: | A3/B4/A4R/SRA3, Custom Size (210 mm x 279.4 mm to 330.2 mm x 487.7 mm) | |
| Booklet Stitch Staple Capacity: | 20 sheets x 10 sets (81 g/m2) (including 1 cover sheet up to 256 g/m2) | |
| Non-staple saddle folded capacity up to 5 sheets (A3/B4/A4R/SRA3) | ||
| Power Source: | 100-240V AC, 50-60 Hz, 2.8A | |
| Dimensions (W x D x H): | 767 mm × 765 mm × 1,040 mm (when the extension tray is not extended) | |
| Weight: | Approx. 110 kg | |
| STAPLE FINISHER-W1 PRO (External) | Number of Trays: | 2 |
| Tray A (Upper) Capacity: | A4/B5/A4R/B5R/A3//B4/SRA3 1,000 sheets | |
| Tray B (Lower) Capacity: | A4/B5/A4R/B5R/A3//B4/SRA3 4,000 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | A4/B5: 100 sheets(80 g/m2), A3/B4/A4R: 50 sheets(80 g/m2) | |
| Power Source: | 220-240V, 50-60 Hz, 8A | |
| Dimensions (W x D x H): | 800 mm × 792 mm × 1,239 mm (when the extension tray is not extended) | |
| Weight: | Approx. 130 kg | |
| BOOKLET FINISHER-W1 PRO (External) | Number of Trays: | 2 |
| Tray A (Upper) Capacity: | A4/B5/A4R/B5R/A3//B4/SRA3 1,000 sheets | |
| Tray B (Lower) Capacity: | A4/B5/A4R/B5R/A3//B4/SRA3 4,000 sheets | |
| Paper Weight: | 52 to 256 g/m2 | |
| Staple Position: | Corner, Double | |
| Staple Capacity: Corner and Double Stapling: | A4/B5: 100 sheets(80 g/m2), A3/B4/A4R/B5R: 50 sheets(80 g/m2) | |
| Booklet Stitch paper size: | A3/B4/A4R/SRA3, Custom Size (210 mm x 279.4 mm to 330.2 mm x 487.7 mm) | |
| Booklet Stitch Staple Capacity: | 25 sheets x 30 sets (81 g/m2) (including 1 cover sheet up to 256 g/m2) | |
| Non-staple saddle folded capacity up to 5 sheets (A3/B4/A4R) | ||
| Power Source: | 220-240V, 50-60 Hz, 8A | |
| Dimensions (W x D x H): | 800 mm × 792 mm × 1,239 mm (when the extension tray is not extended) | |
| Weight: | Approx. 182 kg | |
| PUNCHER UNIT/S | 2/3 HOLE PUNCHER UNIT-A1 (2/3H)*: | Two or Three Holes |
| *Requires either the STAPLE FINISHER-V2 or BOOKLET FINISHER-V2 | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes:A3, B4, A4, A4R, B5, B5R Three holes: A3, A4, B5 | |
| 2/4 HOLE PUNCHER UNIT-A1 (2/4H): | Two or Four Holes | |
| *Requires either the STAPLE FINISHER-V2 or BOOKLET FINISHER-V2 | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: Two holes: | Two holes: A3, B4, A4, A4R, B5, B5R Four holes: A3, A4 | |
| PUNCHER UNIT-BF1 (2/3H)*: | Two or Three Holes | |
| *Requires either the STAPLE FINISHER-X1 or BOOKLET FINISHER-X1 | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes (Legal and Letter-R only) Three holes A3, A4 | |
| Power Source: | From the Finisher | |
| PUNCHER UNIT-BG1 (2/F4H): | Two or Four Holes | |
| *Requires either the STAPLE FINISHER-X1 or BOOKLET FINISHER-X1 | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes A3, A4, A4R, Four holes A3, A4 | |
| Power Source: | From the Finisher | |
| PUNCHER UNIT-BS1 (2/3H)*: | Two or Three Holes | |
| *Requires either the STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes (Legal & Letter-R) Custom size (182mm x 182mm to 297mm x 432mm) Threee holes A3, A4, Custom size:182mm x 240mm to 297mm x 432mm | |
| Power Source: | From the Finisher | |
| PUNCHER UNIT-BT1 (2/F4H): | Two or Four Holes | |
| *Requires either the STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes A3, A4, A4R, B4, B5, B5R, Custom size (182mm x 182mm to 297mm x 432mm) | |
| Four holes A3, A4, Custom size (182mm x 257mm to 297mm x 432mm) | ||
| Power Source: | From the Finisher | |
| PUNCHER UNIT-BS1 (2/3H)*: | Two or Three Holes | |
| *Requires either the STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO | ||
| Acceptable Punch Paper Weight: | 52 to 256 g/m2 | |
| Acceptable Punch Paper Size: | Two holes (Legal & Letter-R) Custom size (182mm x 182mm to 297mm x 432mm) Threee holes A3, A4, Custom size:182mm x 240mm to 297mm x 432mm | |
| Power Source: | From the Finisher | |
| Multi Function Professional Puncher-A1: | ||
| *Requires either the STAPLE FINISHER-X1, BOOKLET FINISHER-X1, STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO | ||
| Acceptable Punch Paper Weight: | Bypass: 52 to 256 g/m2, Punch: 75 to 300 g/m2 | |
| Acceptable Punch Paper Size: | SRA3, A3, A4, A4R | |
| Supported Punch Dies (optional): | A4: (2 or 4 hole), Velo Bind (12 hole), Plastic Comb (21-hole), Twin Loop (23- or 34-hole), Color Coil (47 hole) | |
| Dimensions (W x D x H): | 445 mm x 795 mm x 1,040 mm | |
| Weight: | 102 kg | |
| Power Source: | 230V/50Hz/1.9 Amp | |
| BOOKLET TRIMMER | INNER BOOKLET TRIMMER-A1 (requires Booklet Finisher-X1) | |
| Acceptable Paper Weight: | 60 to 256 g/m2 | |
| Trim Amount: | 2 mm to 20 mm | |
| Waste Tray Capacity: | Approx. 1,500 Sheets | |
| Power Source: | from the finisher | |
| INNER BOOKLET TRIMMER-A1 (requires Booklet Finisher-X1) | ||
| Booklet Capacity: | 30 booklets | |
| Trim Amount: | 2 mm to 20 mm | |
| Waste Tray Capacity: | Approx. 1,500 Sheets | |
| Dimensions: | 1,575 mm x 770 mm x 1,040 mm | |
| Weight: | Approx. 152 kg | |
| Power Source: | from the finisher | |
| COPY TRAY | COPY TRAY-R1 R2: | Provides a simple tray for basic output needs. |
| Capacity: | 250 sheets (80 g/m2) | |
| DOCUMENT INSERTION UNIT | DOCUMENT INSERTION UNIT-N1 (Optional and requires either the STAPLE FINISHER-X1, BOOKLET FINISHER-X1, STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO) | |
| Number of insertion trays: | 2 trays | |
| Insertion Paper Size/ Weight: | A3, B4, A4,A4R, B5, B5R, SRA3 / 52 to 256 g/m2 | |
| Insertion Capacity: | 200 sheets x 2 (80 g/m2) | |
| Dimensions (W x D x H): | 746 mm* x 793 mm x 1,407 mm | |
| Power Source: | 100-240V, 50/60Hz, 1.0 Amp | |
| Weight: | Approx. 61 kg | |
| DOCUMENT FOLDING UNIT | PAPER FOLDING UNIT-J1 (requires either the STAPLE FINISHER-X1, BOOKLET FINISHER-X1, STAPLE FINISHER-W1 PRO or BOOKLET FINISHER-W1 PRO) | |
| Supported Fold Types: | C-Fold, Z-Fold, Accordion Z-Fold, Double-parallel Fold, Half-Fold | |
| Paper Size/ Weight: | C-Fold: A4R / 52 to 105 g/m2 | |
| Z-Fold: A3, B4, A4R/ 52 to 105 g/m2 | ||
| Accordion Z-Fold: A4/ 52 to 105 g/m2 | ||
| Double-parallel Fold: A4/ 52 to 90 g/m2 | ||
| Half-Fold: A: A4/ 52 to 105 g/m2 | ||
| Power Source: | From the Finisher | |
| Dimensions (W x D x H): | 336 mm x 793 mm x 1,190 mm | |
| Weight: | Approx. 71 kg | |
