Machine Type

A3 Monochrome Laser Multifunctional

Core Function

Print, Copy, Scan, Send, and Optional Fax

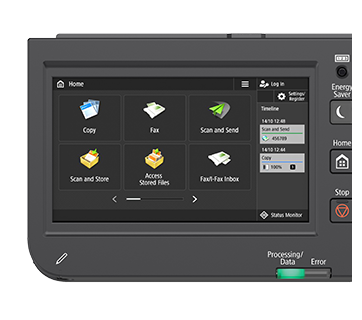

Control Panel

7 inch TFT LCD WSVGA Colour Touch panel

Memory

2.0 GB RAM

Storage

eMMC: 30 GB

Interface Connection

NETWORK
Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)

OTHERS
Standard: USB 2.0 (Host) x2, USB 2.0 (Device) x1

Paper Supply Capacity (A4, 80 gsm)

Standard: 1,200 sheets
Maximum: 2,300 sheets (with Cassette Feeding Unit-AW1)

Paper Output Capacity (A4, 80 gsm)

Standard: 250 sheets
Maximum: 645 sheets (with Inner Finisher-L1 and Copy Tray-T2)

Finishing Capabilities*1

Collate, Group, Offset, Staple, Hole Punch, Eco Staple, Staple On Demand

Supported Media Types

Main Body Cassette (Upper/Lower):
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, PostCard

Multi-purpose Tray:
Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-Punched, Letterhead, PostCard, Labels, Coated, Tracing

Supported Media Sizes

Upper Cassette:
Standard size: A4, A5, A5R, A6R, B5
Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm

Lower Cassette:
Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10*2, Monarch*2, DL*2
Custom Size: 105 x 148 mm to 304.8 x 457.2 mm

Multi-purpose tray:
Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, COM 10 No. 10, Monarch, ISO-C5, DL
Custom size: 98.4 x 139.7 mm to 320.0 x 457.3 mm
Envelopes: 98.0 x 98.0 mm to 320.0 x 457.2 mm

Supported Media Weights*3

Main Body Cassette (Upper/Lower): 52 to 256 gsm
Multi-purpose tray: 52 to 300 gsm
Duplex: 52 to 220 gsm

Warm-up Time
(Quick start mode: ON)

4 seconds or less*4
From Sleep Mode: 10 seconds or less

Dimensions (W x D x H)

With Platen Cover Type Z: 565 x 659 x 788 mm
With Platen Cover-Y3: 565 x 659 x 788 mm
With DADF (45/35 ppm): 565 x 687 x 891 mm
With DADF (30/25 ppm): 565 x 693 x 877 mm

Installation Space (W x D)

Basic:
978 x 1,089 mm (with Platen Cover-Y3 + right door & multi-purpose tray opened + paper cassette opened)

Fully Configured:
1,286 x 1,116 mm (with DADF-BA1 + Inner Finisher tray max extended + Copy Tray-T2 max extended + paper cassette opened

Weight (Without toner)

iR2745i/2735i:
With Platen Cover-Y3: Approx. 60 kg
With DADF-BA1: Approx. 66 kg

iR2730i/iR2725i:
With Platen Cover Type Z: Approx. 59 kg
With DADF-AZ1: Approx. 65 kg

Print Speed (BW)

iR2745i:
Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR2735i:
Simplex: Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR2730i：
Simplex: Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR2725i:
Simplex: Up to 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

Print Resolution (dpi)

600 × 600
1200 × 1200

Page Description Languages

Standard: UFRII, PCL6
Option: Adobe® PostScript®3™

Direct Print

PDF, EPS, TIFF/JPEG, XPS

Printing From Mobile and Cloud Application

AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print

Fonts

PS fonts: 136 Roman
PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*5 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*6

Operating System

UFRII: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PCL: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022
PS: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later)
PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later)

As of Jan. 2022

Copy Speed

iR2745i:
Simplex: Up to 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R)

iR2735i:
Simplex: Up to 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R)

iR2730i:
Simplex: Up to 30 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

iR2725i:
Simplex: Up to 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R)

First-Copy-Out Time (A4)

iR2745i: 5.3 seconds
iR2735i: 6.4 seconds
iR2730i: 7.0 seconds
iR2725i: 7.0 seconds

Copy Resolution (dpi)

600 x 600

Multiple Copies

Up to 9,999 copies

Copy Density

Automatic or Manual (9 Levels)

Magnification

Variable zoom: 25% to 400% (1% Increments)
Preset reduction/enlargement (Others): 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%

Selectable Type

Colour Scanner

Document Feeder Paper Capacity (80 gsm)

DADF-BA1: up to 100 Sheets
DADF-AZ1: up to 50 Sheets

Acceptable Originals and Weights

Platen: Sheet, Book, and 3-Dimensional Objects

Document Feeder media weight:
DADF-BA1：
1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL)
2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL)

DADF-AZ1:
1-sided scanning: 38 to 128 gsm
2-sided scanning: 52 to 128 gsm

Supported Media Sizes

Platen: max. scanning size: 297.0 x 431.8 mm

DADF-BA1:
A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6,
Custom size: 139.7 x 128.0 mm to 297.0 x 431.8 mm

DADF-AZ1：
A3, A4, A4R, A5, A5R, B5, B5R, B4R
Custom size: Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm

Scan Speed (ipm: BW/CL, A4)

DADF-BA1 :
1-sided Scanning: 70/70 (300 x 300 dpi, send), 51 /51 (600 x 600 dpi, copy)
2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5 /25.5 (600 x 600 dpi, copy)

DADF-AZ1:
1-sided Scanning: 35/25 (300 x 300 dpi, send), 25 (BW; 600 x 600 dpi, copy)
2-sided Scanning: 12/8 (300 x 300 dpi, send), 8 (BW; 600 x 600 dpi, copy)

Scan Resolution (dpi)

Scan for Copy: 600 x 600
Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600
Scan for Fax: 600 x 600

Pull Scan Specifications

Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 / Server 2022

As of Nov. 2021

Destination

Standard: E-mail/Internet FAX (SMTP), SMB 3.0, FTP, WebDAV,
Optional: Super G3 FAX

Address Book

LDAP (2,000)/Local (1,600)/One-touch (200)

Send Resolution (dpi)

Push: up to 600 x 600
Pull: up to 600 x 600

Communication Protocol

FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV Email/iFax: SMTP(send), POP3(receive)

File Format

Standard: TIFF, JPEG*7, PDF (Compact, Searchable, PDF/A-1b, Encrypted), XPS (Compact, Searchable), PDF/XPS (Device Signature), Office Open XML (PowerPoint, Word)

Optional: PDF (Trace & Smooth), PDF/XPS (User Signature)

Optional/Standard

Optional on all models

Maximum Number of Connection Lines

1

Modem Speed

Super G3: 33.6 kbps
G3: 14.4 kbps

Compression Method

MH, MR, MMR, JBIG

Resolution (dpi)

200 x 100 (Standard), 200 x 200 (Fine), 200 x 400 (Super Fine), 400 x 400 (Ultra Fine)

Sending/Recording Size

Sending: A3, A4, A4R, A5*8, A5R*8, B4, B5*9, B5R*8
Receiving: A3, A4, A4R, A5R, B4, B5, B5R

Fax Memory

Up to 30,000 pages (2,000 jobs)

Speed Dials

Max. 200

Group Dials/Destinations

Max. 199 dials

Sequential Broadcast

Max. 256 addresses

Memory Backup

Yes

Memory Media

Scan to Memory Media

Authentication and Access Control

User Authentication (Picture Login, Picture and PIN Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)

Document Security

Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*10), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*11), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)

Network Security

TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall, Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception

Device Security

Standard Storage Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup, Runtime Intrusion Detection

Device Management and Auditing

Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Security Policy Setting

Operating Environment

Temperature: 10 to 30 ºC
Humidity: 20 to 80% RH (Relative Humidity)

Power Source

Asia: 220-240V 50/60Hz 10A

Power Consumption

Maximum: Approx. 1,500 W
Copying (with DADF continuous scan): Approx. 666 W (220-240V)*12
Standby: Approx. 28.1 W (220-240V)*12
Sleep Mode: Approx. Wired LAN: 1.0 W*13

Toner Yield (Estimated Yield @6% coverage)

NPG-87 Toner Black: 30,000 pages

Tracking and Reporting

uniFLOW Online Express / uniFLOW Online

Remote Management Tools

iW Management Console
eMaintenance
Content Delivery System

Scanning Software

ScanGear

Optimisation Tools

Canon Driver Configuration Tool

Document Publishing

iW DESKTOP

Cassette Feeding Unit-AW1

Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm)
Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead
Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm
Paper Weight: 52 to 256 gsm
Power Source: From the Main Unit
Dimensions (W x D x H): 565 x 635 x 248 mm
Weight: Approx. 16.0 kg

Inner 2way Tray-M1

Tray Capacity (with 80 gsm paper)
Upper tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: 100 sheets
Lower tray (standard tray): A4, A5, A5R, A6R, B5, B5R: up to 250 sheets
SRA3, A3, A4R, B4: up to 100 sheets
Paper Weight: 52 to 300 gsm
Dimensions (W x D x H): 428 x 405 x 88 mm
Weight: Approx. 0.7 kg

Copy Tray-T2

Capacity (with 80 gsm paper):
A4, A5R, B5, B5R: 100 sheets
A3, A4R, B4: 65 sheets
Dimensions (W x D x H): 444 × 373 × 176 mm (attached to the main unit, when the extension tray is extended)
Weight: 0.5 kg

Inner Finisher-L1

Upper Tray: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R: approx. 45 sheets
Lower Tray: A4, A5, A5R, B5: approx. 500 sheets
SRA3, A3, A4R, B4, B5R: 250 sheets
A6R: 30 sheets
Envelope: 10 sheets
Paper Weight: 52 to 300 gsm
Staple Position: Corner, Double
Staple Capacity:
A4, B5: 50 sheets (52 to 90 gsm)
A4R: 40 sheets (52 to 90 gsm)
A3, B4: 30 sheets (52 to 90 gsm)
Eco Staple:
A3, A4, B4, B5: 10 sheets (52 to 64 gsm)
8 sheets (65 to 81.4 gsm)
6 sheets (82 to 105 gsm)
Staple On Demand: approx. 40 sheets (80 gsm)
Dimensions (W x D x H): 727 × 525 × 225 mm (attached to the main unit, when the extension tray is extended)
Weight: Approx. 9.1 kg

Inner 2/4 Hole Puncher-D1

(Requires Inner Finisher-L1)
Two or Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Two holes A3, A4, A4R, A5, B4, B5, B5R,
Four holes A3, A4

Inner 4 Hole Puncher-D1

(Requires Inner Finisher-L1)
Four Holes
Acceptable Punch Paper Weight: 52 to 300 gsm
Acceptable Punch Paper Size:
Four holes A3, A4, A4R, A5, B4, B5, B5R

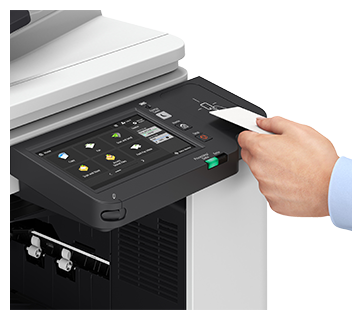

Card Readers

Copy Card Reader-F1
Copy Card Reader Attachment-H3
IC Card Reader Attachment-B4
Option Attachment kit for Reader-A2

Others

DADF-AZ1
Platen Cover Type Z
Platen Cover-Y3
Utility Tray-B1
DADF-BA1

Print Accessories

PCL International Font Set-A
PS Printer Kit-BT1
Barcode Printing Kit-D1

Send Options

Universal Send Trace & Smooth PDF Kit-A1
Universal Send Digital User Signature Kit-C1

System Accessories

Copy Control Interface Kit-D1

Fax Accessories

Super G3 FAX Board-BJ1
Remote Fax Kit-A1

Accessibility Accessories

ADF Access Handle-A1

Staple Cartridges

Staple-P1
